MODEL: MFI-01

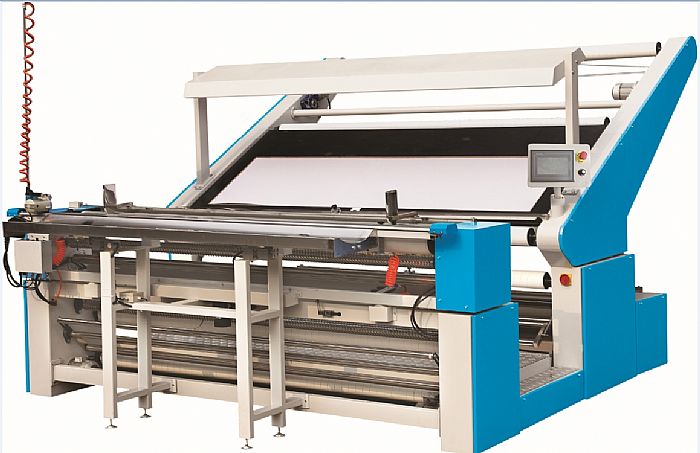

Knitting Fabric Non Tension Inspection Machine

Parameter:

l
Dimension: 3000 X 4200 X2300 MM

l
Speed: 0-50 M/NIN

l
Power supply : 220V

l
Motor:  1.55 KW(Transmission motor)

           1.11KW (Selvedge Trimmer Motor)

l
Useful width :2300 MM 2500MM

l
The widest diameter of fabric roll :500MM

l
Accuracy of checking selvedge : ±5 MM

l
Accuracy of counting length : ≤ 0.5 %

Feature:

l
Applicable for the quality inspection for
knitting surface materials for textile, printing and dyeing enterprises.

l
Automatically track the edging with
infrared ray,  automatically align the
edge of the fabric;

l
Automatically control the front and back
with automatic tension frame, protect the fabric extending roller, prevent
crease and rolling with edge blowing device;

l
Frequency speed control, kick control, simple
and convenient operation;

l
Fabric roller is equipped with speed
differential mechanism , adjust the softness and hardness of fabric roll;

l
Cut the fabric with automatic cutter;

l
Electronic balance and printer are
optional.
