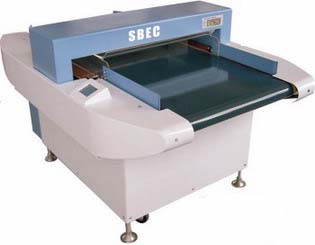

ZD-630C needle detector

Post Date :2006-08-30

Expire Date :2007-01-14

View Basket

ZD-630C

Detailed Trade Lead Description

ZD-630C MAGNETIC INDUCTION METAL DETECTOR AUTOMATIC NEEDLE DETECTOR FEATURES Cycled magnetic sensor, excellent anti-disturb performance. The core system and part of digital signal processing are based on high speed 32bit RISC CRU. Use touch screen technology and based on muti language operation system. Accurate metal or needle chips locating technology, many customers define functions, easy to use. Individual sensitivity adjusting for every channel, fit for more product detecting. Smart report system, provide kinds of report. The control systems are based on RS-485 bus technology Installed machine state indicator and operator guider which are based on matrix LED display technology PURPOSE Detecting the metal chips inside the sewing products, fabric products pharmaceutical products, chemical products, rubber products, food etc. SPECIFICATIONS Model ZD-630C(100MM) Detection method Magnetic induction Detection ability 0.8mm steel to small scissors Detection adjustment MAX. 128 steps/channel Detection width 650mm Alarm method Buzzer, LED indicator Belt speed 32m/min(50HZ), 40m/min(60HZ) Power source AC100—240V 50—60HZ Rated output Appr 140w Dimension 1650mm(L)x1100mm(W)x900mm(H) Weight Appr 220kg ZD-630C SERIES Detection height Detection sensitivity remarks 100mm 0.8mm steel to small scissors Standard type 120mm 1.0mm steel to small scissors Option at factory 150mm 1.2—1.5mm steel to small scissors Option at factory 200mm 1.5—2.0mm steel to small scissors Option at factory Customer define range: width:600mm—2000mm height:80mm—300mm(need confirm from factory)
