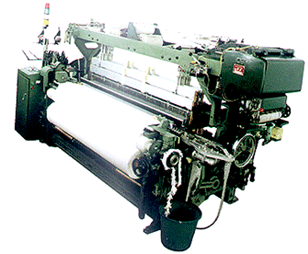

| YC317 flexible rapier loom |
| Post Date :2006-09-13 |
| Expire Date :2007-09-13 |
 View Basket |
| Detailed Trade Lead Description |
| APPLICATION This loom is usually used to weave comparatively complicated cotton fabrics, blended yarns, threads and chemical fiber fabrics, featuring weaving techniques as plain cloth to 16 shafts.
PERFORMANCE CHARACTERISTICS
YC317 flexible rapier loom is a shuttle-less loom developed on the basis of GA615 model cotton loom, as it adopts flexible rapier weft insertion, electronic type warp stop motion, electronic weft storage unit, and electro-magnetic clutch, piezoelectric feeler as well as other advanced technologies; as a whole, this machine has realized the principle of“bearing-based and
high-speed operation”, and features a simple structure, ease in operation, high weaving efficiency, low consumption of energy, and convenience in terms of maintenance as well.
MAIN TECHNICAL PARAMETERS
1、 Weft insertion pattern : compound 4-bar weft insertion , flexible rapier , central connection
2、 Cloth width(mm):1800、2000、2300
3、 Loom speed(rpm):180-240 4、 Range of yarn count (pieces/cm) :14-17
5、 Loom beam disc diameter (mm): φ600
6、Maximum roll diameter(mm): φ300
7、Engine power(kw):1.5
8、Let-off pattern: let-off outside machine
9、Shedding pattern:overhead type Dobby machine(20 pieces)
10、Noise(db): ＜90
11、Dimensions(mm):Length 3330×width1727×height1675
12、Machine weight(kg):about 1700
|
|
|
| |
