| TWO FOR ONE TWISTED MACHINE RPR , PATTERN GC 240 NG/300POSITIONS |
| Post Date :2005-06-29 |
| Expire Date :2006-06-29 |
 View Basket |
| TWISTING CONTINUOS FILAMENT FLAT OR TEXTURED OF SYNTHETIC ORIGIN (POLYAMIDE, NYLON, POLYESTER, POLIPROPILENE..) |
| Detailed Trade Lead Description |

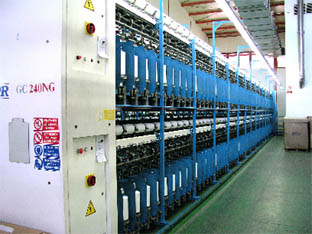

| THE TWO-FOR-ONE TWISTERS MODEL GC 240 PROCESSING YARN CONTINUOUS FILAMENT, FLAT OR TEXTURED OF SYNTHETIC ORIGIN (POLYESTER, POLYPROPYLENE, ACETATE, RAY覰 ) , FEATURE A HIGH VERSATILITY; IN FACT THEY CAN FIT DIFFERENT FEEDING PACKAGES SUCH AS BOTTLE BOBBINS, FLANGED BOBBINS, COPS AND HEAVY PACKAGES FOR A REMARKABLE PRODUCTIVE PERFOMANCE.
THE MACHINES HAVE BEEN DEVELOPPED HOWEVER ON TWO DECKS, FOR ECONOMY, INVESTMENT, MANAGEMENT AND DIMENSIONS REASONS.
THE MOST INTERESTING FEATURES ARE:
DRIVE
MACHINE ON TWO SIDES WITH SINGLE DRIVE.
SPINDLES
PLACED ON THE TWO MACHINE SIDES, THEY ARE FITTED WITH THE ROTATING ROD IN OIL BATH ON SWIVELLING SUPPORTS, WHICH ASSURE A CONSTANT PRESSURE OF THE SPINDLES ONTO THE DRIVING TANGENTIAL BELT; THEY CAN BE DETACHED SINGULARLY DURING THE FEEDING PACKAGES LOADING AND DOFFING OPERATIONS. SPINDLE PLATE AND RESERVE DICS APT TO COVER THE PROCESS OF A WIDE COUNTS RANGE IN A SATISFACTORY WAY.
FEEDING
CENTRALISED TYPE, OBTAINED BY MEANS OF CERAMIC DISC FEEDERS AND EQUIPPED WITH AN ADJUSTING GROUP FOR THE TENSION OF ALL THE POSITIONS.
TAKE UP
BICONICAL BOBBINS.
TAKE-UP THREAD-GUIDE WITH CENTRALISED ECCENTRIC DRIVE; VARIATIONS THROUGH GEARS EXCHANGE. DIFFERENTIAL GEAR FOR THE "PATTERNING" EFFECT AND INDIPENDENT OR CENTRALISED BOBBINS TAPERING.
DEVICES
- SPINDLE DTC170 MAGNETO FIXES, 6 CERAMICS, 6 DIAL DIAMET.7 mm.
- SOFT-EDGES DEVICE FOR TAKE-UP BOBBINS
- ANTI-SNARLING THREAD-GUIDE.
- HOURS-COUNTER
- INTERNAL FEEDER MECHANISM.
- FORMATION OF THE BOBBIN RESERVE TAIL.
- RESTART RELAIS IN CASE OF SHORT POWER LACKS
- 1 CARRIAGE WIDE 800 mm
- TENSORS PURLIN 1 EACH 3 SPINDLES.
- PULLEYS FOR 9000-9500-10000 RPM.
- MOTOR KW 18,4 x 2 50H 380V III , TO EXTEND IN THE FUTURE TILL 320 pos/ 22700 mm.
|
|
|
