Weaner flooring

Country of Origin:
Main Export Markets:

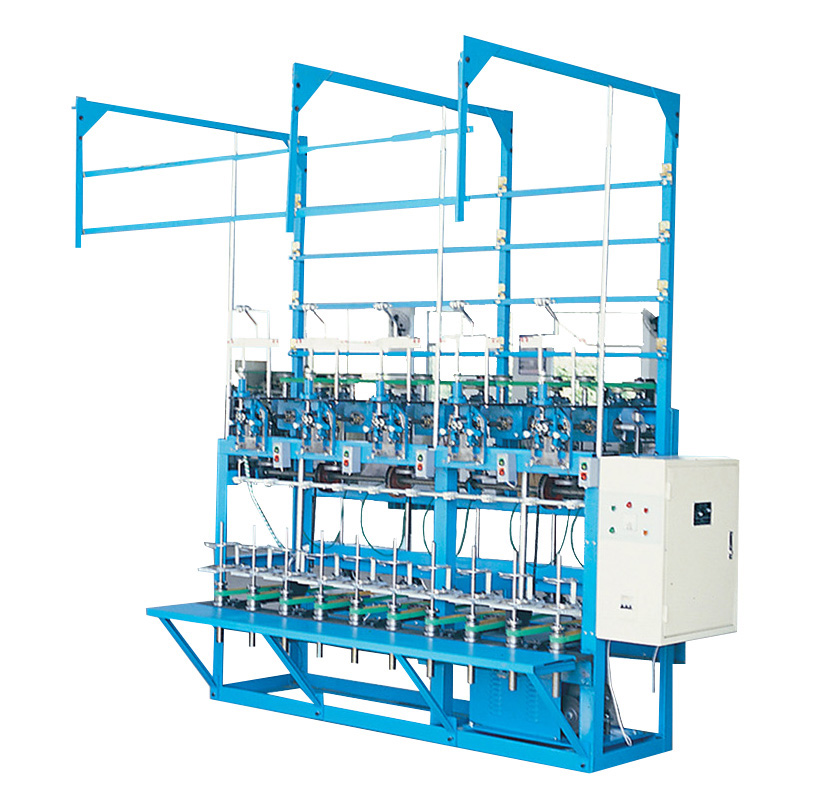

TJ-80 Chenille Machine
Post Date :2007-08-20
Expire Date :2007-08-03

View Basket

Detailed Trade Lead Description
Main technical parameters: 1.spindle gauge:200mm 2.the number of spindles :on the base of 20 spindles, can together up to Max.80 spindles 3.rings inner diameter:112mm 4.lift stroke:260mm(adjustable) 5.up and down speed:adjustable by imported frequency conversion and programmable controller. 6.production range of thickness:1 to 7 counts. 7.Roller diameter :29.5mm 8.spindle speed:3780-6500r/min 9.turret head rotation speed:5300-20000r/min 10.capacity: 4.7m/min-12m/min 11.twisting direction : S.(if need z, should remark) 12.drive model : every 2-spindle drove by an independent motor, lifting part by one motor, 13.total power : 4.1kw(20-spindle) 14.dimension : L*W*H=4500*1700*2600mm(20-spindle) each10-spindle dimension: L*W*H=2040*1700*2600mm
