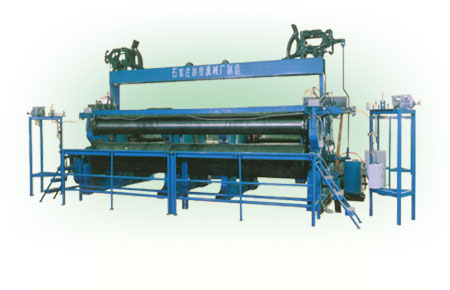

| Model JW Polyester Web Loom |
| Post Date :2008-03-25 |
| Expire Date :2009-03-25 |
 View Basket |
| Detailed Trade Lead Description |
|
This machine is a new product integrated with mechanism, electric and pneumatics. On the basis of retaining the firm framework and reliable take-up and let-off mechanism of TW series of copper web loom, it greatly improves the main power drive, and adopts crank four-linkage single weft beating, which makes the complete machine steadier. It is easy to operate with advanced PLC programmable control system, automatically control movement of yarn pressing, yarn take-up, weft holding, shuttle checking, and stop on missing weft, etc. It not only can weave high-quality polyester web, but also improves productivity by over 30%, and has high ratio of function to price. So it is an ideal loom in papermaking web industry of our country.
Main Constructions and Technical Parameters:
1. Reed width: 3.2～7.2 m
2. Shedding: double-dobby shedding; eight heald frames.
3. Beating-up: crankshaft four-linkage single beating-up; multi-fissions four-linkage single beating-up (wider width) .
4. Weft insertion: picking stick mechanical shooting-in.
5. Let-off: mechanical positive let-off.
6. Take-up: mechanical half-positive take-up.
7. Drive: unilateral motor, pneumatic clutch and brake; motor power 5.5～11KW.
9. Loom speed: 22-35rpm
10. Overall dimension (mm):
length×width×height：（7600～11600）×3800×3000
11. Weight: about 20～50T
|
|
|
| |
