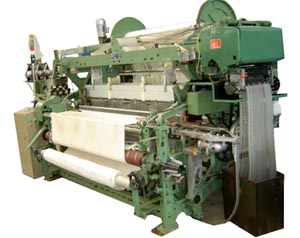

| MJ317 Terry Towel Rapier Loom |
| Post Date :2006-09-13 |
| Expire Date :2007-09-13 |
 View Basket |
| Detailed Trade Lead Description |
| APPLCATION
This terry towels rapier loom is mainly applied to weave various kinds of face towel , tea cloth, square cloth and bath cloth which are principally made of cotton yarns, and terry towel blanket etc. as well as looped fabrics of spiral satin grade.
PERFORMANCE CHARACTERISTICS
MJ317 series of terry towel rapier looms are shuttle-less terry towel looms which have been developed on the basis of YC317 flexible rapier loom (also turned out by our company ), and have delivered a pioneering technology at home . These looms have taken into account the actual
conditions of Chinese domestic terry towel looms , and absorbed the characteristics of foreign shuttle-less terry towel looms , and thus features a galaxy of edges such as a simple structure , a high loom speed , top quality of textile fabrics , a high weaving efficiency , low noises , low energy consumption , and convenience in terms of maintenance work etc.
MAIN TECHNICAL PARAMETERS 1、 Raising form : cam driven , producing terry loop by fabric move
2、 Loop height(mm):0-12 , stepless adjustment
3、 Weft insertion pattern : compound 4-bar weft insertion , flexible rapier , central connection
4、 Cloth width(mm):1800、2000、2300
5、 Loom speed(rpm):140-180
6、 Weft insertion rate(mm/min):306-448
7、 Range of weaving-suitable yarn count(tex):9.5-45
8、 Weaving-suitable(pieces/cm) :14-17
9、 Loom beam maximum diameter (mm): terry warp let-off: 600 Main warp: 600
10、Maximum roll diameter(mm): ≥300
11、Engine a gross power(kw):1.7
12、Let-off pattern: main warp: let-off outside machine terry warp let-off: electronic let-off
13、Shedding pattern:overhead type Dobby machine(20 pieces) or jacquard machine(1480needles)
14、Noise(db): ＜85
15、Dimensions(mm):Length 3450×width1950×height2150 |
|
|
| |
