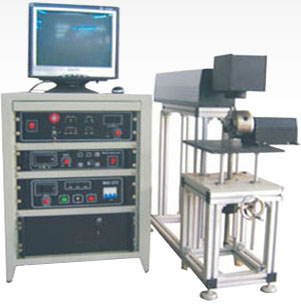

| Laser Marking/Engraving Machine (PEDB-150) |
| Post Date :2007-07-23 |
| Expire Date :2008-07-22 |
 View Basket |
| 1 |
| Detailed Trade Lead Description |
| Performance Features:
The machine takes YAG lamp-pumped solid laser device as the light source. By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realise marking and graph processing.
It has the longest application time and the most extensive usage areas and is the most mature technology at present.
By adding rotation controlling system on the basis of PEDB-100, it can mark on the cylinderical and conical work piece.
By using fast-speed scan lens, it can scan the graph in shortest time & finish fine marking process.
It can configure auto clamp and bating production line as user’ s requirements
It can mark data, series number & bar code automatically.
Available for data communications, networking.
Application scope and material:
Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights,etc.,
Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard,etc.,
Mechanical Parts : Instrument : panel signs,nameplates, precision equipment, bearings, gears, standard parts, motors,etc.,
Hardware Tools : Knives, tools, measuring tool, cutting tool,etc.,
Daily Necessities : Handicrafts, zipper, key holder, sanitary ware,etc.,
Technical Data:
Max Output Power: 50W
Standard Marking Range: 110 mm×110mm
Selective Marking Scope: 70mm×70mm / 175 mm×175mm
Marking Depth: 0.01~0.2mm
Marking Speed: 7000mm/second
Repeated Accuracy: 0.001mm
Laser Wavelength: 1064 um
Minimum Line Width: 0.015mm
Power Supply: 380V/50HZ
Machine Power: 5KW
|
|
|
