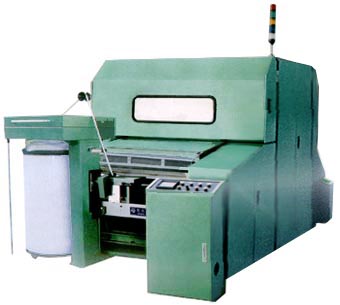

FA219 Carding Machine
Post Date :2006-09-13
Expire Date :2007-09-13

View Basket

Detailed Trade Lead Description
Main feature 1、 Three parents obtained :three stripper rollers device ,main driving system and filter chamber used for single-card; 2、 Step less variabe drive of doffer controlled by an inverter(an electronic frequency converter); 3、 Feed roller is driven by an electronic frequency converter which permits stemits stepless variations of its speed and is controlled to be synchronized with the doffer driven by the PC. 4、 Adoption of belt for driving with steady sunning and low noise. 5、 New type of three front stationary flats and three post ones; 6、 One set of carding segment installed under licker-in; 7、 New model and high quality metallic card clothing; 8、 Digital display unit and contact less sensor showing technical parameters such as delivery speed, shift production, ect…, And iseveral automatic stop motion device; 9、 Continuous suction of four points of overcard and intermittent suction of system. Specifications 1、 Applications: processing cotton and man-made fibres or blends in length of 22～76mm. 2、 Sliver count(g/m):3.5～6.5 3、 Lap size(mm): max diameter 550 width 980 4、 Cotton layer weight by chute feed(g/m):450-1000 5、 Production rate(kg/h):up to 50 6、 Delivery speed(m/min):87.3～166.2 7、 Totaldraft:67.5～128.5 8、 Licker-in speed(r/mm):930 800 9、 Doffer speed(r/mm):7～64 10、 Cylinder speed(r/mm)360 330 428 11、 No.Of revolving flats(working/total):41/106 12、 Flats speed(mm/min): Cotton: 140.8 184.1 240.7 341.9 164.3 214.8 280.9 398.9 Chemical fibre: 90.8 129.1 168.8 220.6 313.4 13、Carding segment under licker-in:1 piece Post stationary flat:3 pieces Front stationary flat:3 pieces 14、 Can size(mm)diameter:600 Height:900 1100 15、 Suction: Outlet of fan for vontinuous suction over card: air volume 240m3/h static pressure-49～-98Pa inlet of fan for intermittent suction over card ＆ under card: air volume 3000m3/h static pressure –2000Pa 16、 Total installed power:5.9kw 17、 Space requirement(length×width):3523×2096mm 18、 Net weight(kg):appro×:4500
