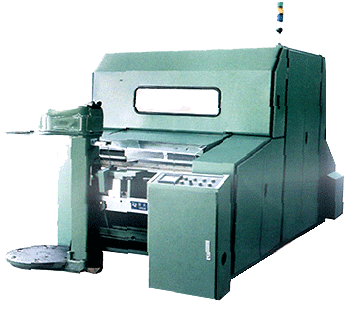

FA209 Carding Machine

Post Date :2006-09-13

Expire Date :2007-09-13

View Basket

Detailed Trade Lead Description

Main feature 1、Three parents obtained:three stripper rollers device , main driving system and filter chanber used for single-card 2、Stepless variabe drive of doffer controlled by an inverter(an electronic frequency converter) 3、New type of three front stationary flats and three post ones 4、One set of carding segment installed under licker-in 5、New model and high quality metallic card clothing 6、Digital display unit and contactless sensor showing technical 　 parameters such as delivery speed , shift production , 　 ect.......,And iseveral automatic stop motion device 7、Continuous suction of four points of overcard and intermittent suction of system Specifications 1、 Applications : processing cotton and man-made fibres or blends in length of 22-76 2、 Sliver count(g/m):3.5-6.5 3 、Lap size(mm):max diameter 550 width 980 4、 Cotton layer weight by chute feed (g/m):450-1000 5、 Production rate (kg/h):up to 40 6 、Total draft :67.5-120.5 7 、Licker-in speed(r/mm): 930 800 8 、Doffer speed(r/mm): 6-36 9 、Cylinder apeed(r/mm): 360 330 10 、No.Of revolving flats (working/total): 41/106 11 、Flats speed(mm/min): 72.128.218.310 12 、Carding segment under licker-in: 1 piece 　　Post stationary flat: 3 pieces 　　Front stationary flat: 3 pieces 13、 Can size (mm) diameter: 600 　　 Height: 900 1100 14 、Suction system : The filter chamber of single-card is used at four overcard suction points to extract 　　 continuously (static pressure on air outlet is required to be -49到-98pa).Air outlet: 1800m3/h 　　　The undercard waste and fly and dust on the filter net of chamber are extracted intermittently by suction 　　 system of outside card(the air volume on air inlet of each card is required to be 2000m3/h, static pressure 　　 to be-1863pa). 　　 The suction system of outside card is supplied by userself(if required, we can specially design the suction 　　 system for user and suddly it with card). 15 、Total installed power:7.17kw. 16 、Space requirement(length×width): 3523×2096mm 17 、Net weigth(kg):approx:4500
