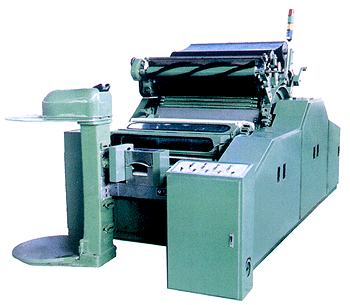

A186H Carding Machine
Post Date :2006-09-13
Expire Date :2007-09-13

View Basket

Detailed Trade Lead Description
Main feature 　 　Microcomputer control and digital display relevant parameters . Front and rear stationary flats and card segment under lickerin are fixed . Automatic stopping while returning flow of fibres, thick laps and sliver breakage . Testing the delivery speed and draft range . display the length. 　　Flat uses 0.56mm small heel-toe improve the combing efficiency. Doffer motor is of stepless frequency control by inverter , piecing-up with low speed and high-speed motion.Two types of suction(intermittent or continuous)for user's option. Model right-handed(standing in front of the machine,facing to the Doffer) Width 1020mm Applicable lap max.diameter 550mm Width 980mm Cylinder working diametre Φ1289mm Doffer working diametre Φ707mm Cylinder speed(selective) 330r.p.m(for chemical fibre) 360r.p.m(for cotton) Doffer speed frequency control Draft multiple 67.3-120.2 Auxiliary carding parts Card segment、Font-rear stationary flats Net Weight 4.50tons Motor main motor 3.3KW、Doffer motor 1.1KW Overall size 3684＊2009.5mm production rate up to 30KG
