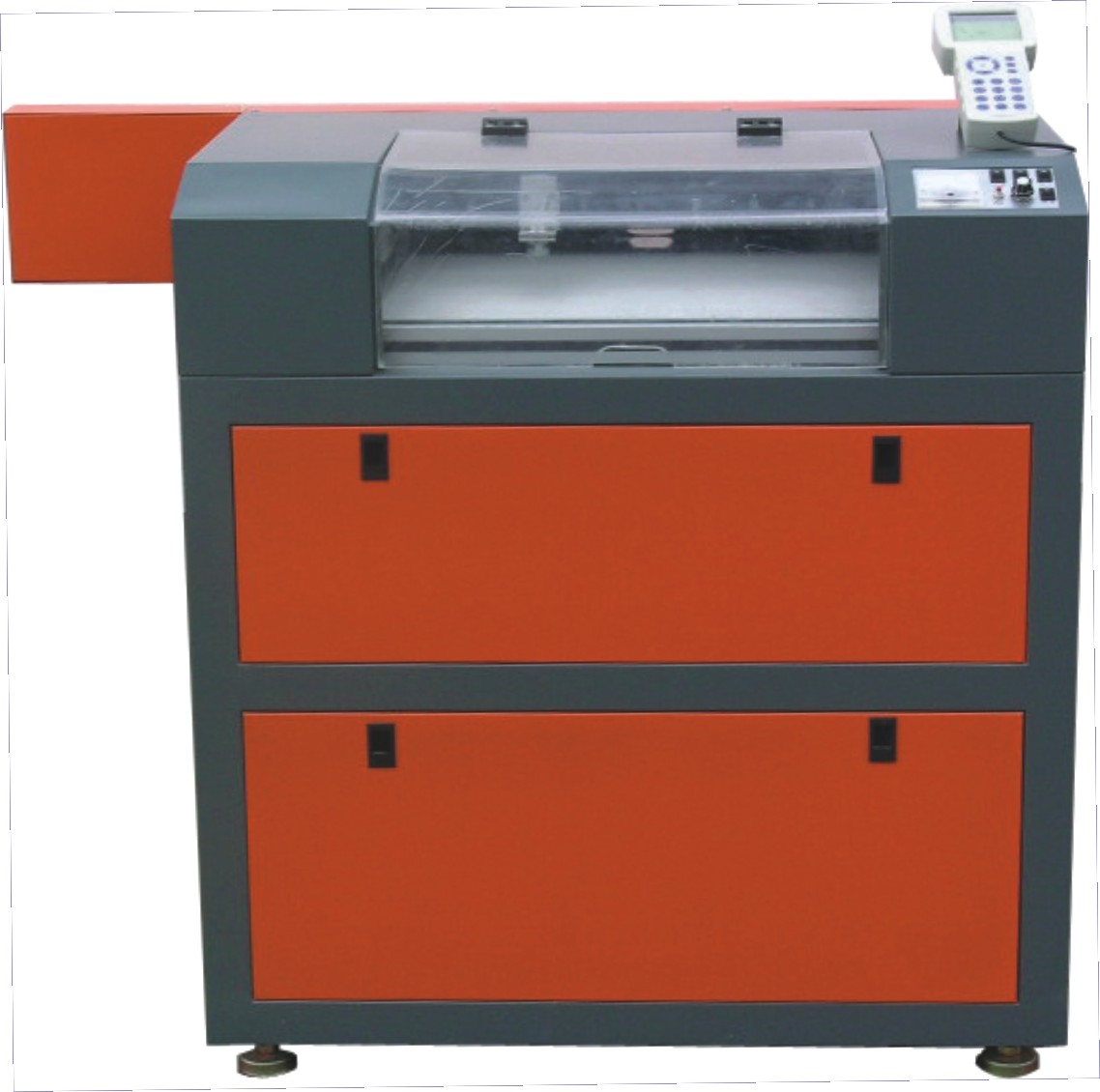

| 4060 series laser handicraft engraving machine |
| Post Date :2006-08-15 |
| Expire Date :2007-08-15 |
 View Basket |
| using in advertisement line and |
| Detailed Trade Lead Description |
| Application
Handicraft industry, decoration, and advertising industry.
Function
The machine is widely applied in the fine engraving on nonmetallic materials like acrylic, organic board, double color plate, plank, bamboo product, paper, plastic, PVC board, density board, marble, glass, etc. And all kinds of characters, graphs, images, trademarks and so on.
Device
The double guide rail, step drive, belt transmission, tube feeding, lift platform, the honey-comb striation, the circulation of water cooling, the hydraulic protection, exclusion of dust and smoke, the huff protection, the proprietary software which supports the output of various file format: PLT, BMP, DXF, DST, T100, etc.
Optional configuration
Slewing gear.
The main of technical parameters
Laser power 40w/60w
Connecting ways PCI/USB online/offline reading U flash
Working platform size 400x600mm
Engraving speed 1000mm/s
The accuracy of repeated orientation Less than0.1mm
Min width of line 0.05mm
Cooling ways Circulation of water cooling
Power supply 220V/50Hz/1kVA
|
|
|
