| Computerized Quitling Machine |
| Post Date :2008-03-13 |
| Expire Date :2009-03-13 |
 View Basket |
| Detailed Trade Lead Description |

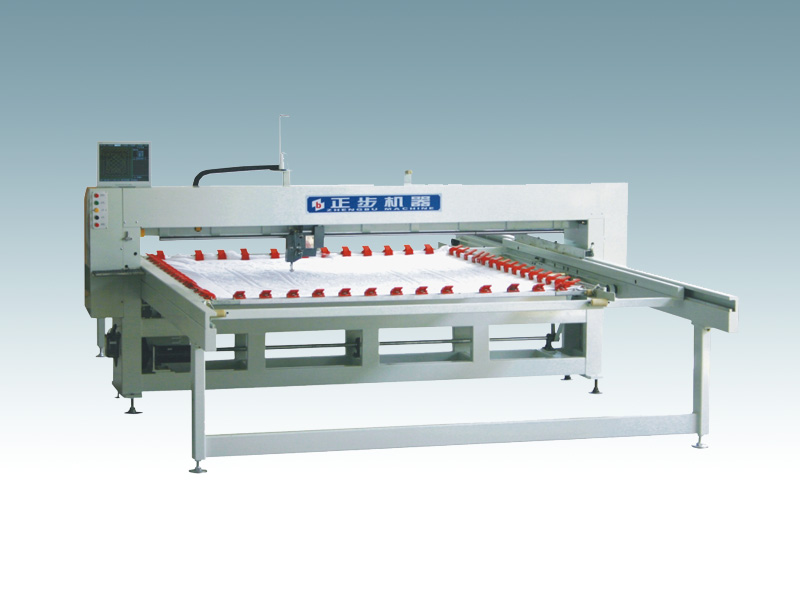

| HFJ-F (seriers) Computerized Quitling Machine
ModelParameter HFJ-26F HFJ-28F HFJ-30F HFJ-32F HFJ-35F
Max Quilting Size 2.6×2.8m 2.8×3.2m 3.0×3.2m 3.2×3.5m 3.5×3.5m
Max Needle Drop Size 2.4×2.6m 2.6×3.0m 2.8×3.0m 3.0×3.3m 3.3×3.3m
Sewing-Machine Single head, single needle, double-line locked style, big rotating shuttle
Machine Needle Singer MR5 18~21#
Sewing-thick 1200g/㎡ 1000g/㎡
Sewing Speed 500~2200 SPM 500~2000 SPM
Needle Distance 2~7mm
Dimensions(L×W×H) 5.0×3.6×1.4m 5.4×3.8×1.4m 5.4×4.0×1.4m 5.8×4.2×1.4m 5.8×4.5×1.4m
Power AC 220V, 50Hz, 1.5Kw
Weight 1800Kg 1900Kg 2000Kg 2200Kg 2300Kg
Characteristics:
HFJ-F(series) computerized quilting machines, are sewing equipments for producing all kinds of bedding products.
●Use industrial control system to keep the machine run reliably, main shaft is driven by inverter, movement of X axis and Y axis by step motor driver.
●Set latest industrial control card, capable of copying pattern and other files from USB-disk，and enable to use USB-disk reset while other disks in computer can not work.
It’s convenient to copy or delete pattern files by pattern management function.
●Use hydro-oiling concentrative sets for supplying oil to sewing-head and sewing machine. It’s convenient, brief and very credible.
●Supply two sets of pressing-foot device to sewing-head for your option in vary conditions. It’s very easy to change them.
●Power consumption less than 1Kw.
●Use latest card of controlling electrocircuit, combined with upgraded running control program, capable of distinguishing patterns of variety forms.
●With function of pattern viewing and rotating or minoring pattern.
●Capable of counting output, and resetting to zero.
●Both forward and backward modes for retreat quilting, needle distance can be treated specially, and the stitch length can be changed.
●Needle stays at upper position at pause time automatically, machine stop working and detect itself while needle thread breakage.
●Two quilting methods: forward and backward, and offer press buttons like forward, backward and needle thread etc.
●Display quilting status at any time and prompt operation.
●Trace seeking function makes needle quickly located in its position.
●Convenient in defining and revising frame range and pattern size with setting and modifying functions.
●Accompanied by change of defining pattern range and space, pattern size scales automatically.
●With protection function against against exceeding in limit range; testing system function, can detect the machine working status quickly, it used for repairing machine.
●Offset function makes it available to join separated patterns accurately.
Main shaft self-detect function effectively avoid the accident of breaking quilt.
●Return to original point automatically or manually, it will reduce faults.
|
|
|
