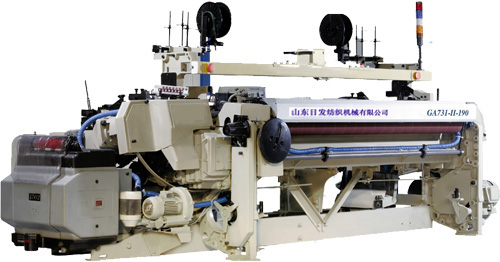

| Sell GA731-II Rapier Loom |
|
| Detailed Trade Lead Description |
Main Technical Performance
Reed Width (cm): 190、210、230、260、280、320、360、380、460
Loom Speed:
Reed width at 190cm: 312-430 R.P.M approx
Reed width at 280cm: 232-320 R.P.M approx
Reed width at 320cm: 224-300 R.P.M approx
Reed width at 360cm: 195-280 R.P.M approx
Weft insertion rate: 1000M/minute
Power consumption: less than 4.6kw
Control: controlled by microcomputer, LCD system
Beam: beam flange diameter Φ800mm, normal single beam or double beams; （flange of Φ1000 is optional）
Cloth roll: diameter Ф 550mm (max)
Function: 8 colors electronic weft selection, automatic pick finding
Wide Application Fields:
Yarn: the loom can weave all kinds of nature fiber (such as cotton, wool, silk, flax) and various artificial and chemical fibers.
Count: spun yarn 5-500tes; filament yarn 1.7-500tex
Fabric: The loom is suitable to weave woolen and worsted fabrics and all kinds of fabrics like linen, silk, chemical fiber and cotton.
|
|
|
|
|
