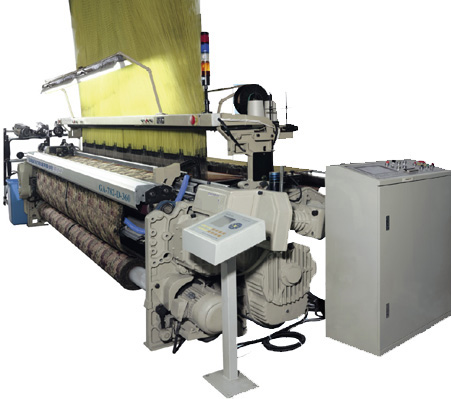

| Sell GA782Wide Width Jacquard Rapier Loom |
|
| Detailed Trade Lead Description |
Main specification:
Reed Width（cm）：150、190、210、230、280、320、360、380
Loom speed:
Reed width at 150cm: 320-430 R.P.M approx
Reed width at 190cm: 312-430 R.P.M approx
Reed width at 280cm: 232-320 R.P.M approx
Reed width at 320cm: 224-300 R.P.M approx
Reed width at 360cm: 195-280 R.P.M approx
Weft insertion rate: 1000M/minute
Power consumption: less than 4.6kw
Control: controlled by microcomputer, LCD system
Beam: beam flange diameter Φ800mm, normal single beam or double beams;
Cloth roll: diameter Ф 550mm (max)
Shedding Device: can be equipped with high-speed jacquard machine.
Wide Application Fields:
Yarn: the loom can weave all kinds of nature fiber (such as cotton, wool, silk, flax) and various artificial and chemical fiber.
Count: spun yarn 5-500tes; filament yarn 1.7-500tex
Fabric: This model can be used widely to weave domestic decoration and industry decoration fabrics, also can weave various jacquard decorative fabric, curtains, sofa fabric, auto car seat cloth, brand and other complex patterns cloth.
Loom function: 8 colors electronic weft selection, automatic pick-finding. Adopts modern MC reverse unit.
|
|
|
|
|
