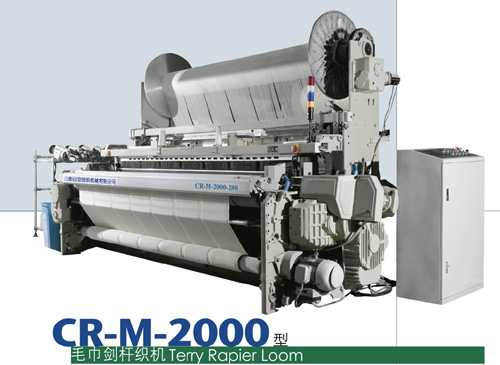

| Sell CR-M-2000 Terry Rapier Loom |
|
| Detailed Trade Lead Description |
Main specification：
Reed width（cm）：190、210、230、260、280、300
Speed：230－360R.P.M
Loop height: 0－10mm stepless control
Yarn count: Staple Nm4-Nm200; Filament tex1.7-tex380
Ground warp let-off: beam diameter Ф600mm
Let-off motion: Electronic let-off (can select positive mechanical let-off)
Loop warp let-off: beam diameter Ф800mm (Ф1000mm beam is optional)
Take-up unit: maximum take-up diameter Ф550mm.
Take-up motion: electronic take-up (positive mechanical take-up is optional).
Transmission unit: startup and brake-electromagnetism clutch
Main motor: 4kw.
Main instruction:
Shedding device: electronic dobby or jacquard machine, 20 shafts of dobby (max).
Loop warp let-off: loop warp adopts electronic let-off and independent electric control system, which can easily adjust and control loom warp let-off.
Loop: adopts the sole cam control system and loop against cloth moving, uses four couplers unit, which produce 1 loop file by per 3 picks. (4 picks device is an optional). The loom can weave two kinds of different loop height in the same fabric.
Weft density change: automatic controlled by electronic let-off and electronic take-up program, can meet the requirement of weaving various terry fabrics.
Control and inspection: controlled by microcomputer, electronic let-off, electronic take-up, automatic pick-finding, malfunction inspection, LCD display.
|
|
|
|
|
