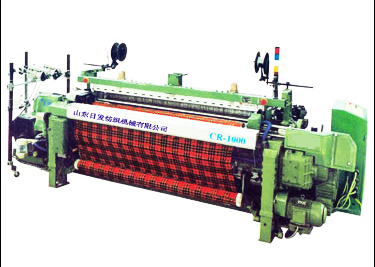

| CR-1000 high-speed rapier loom |
| Post Date :2008-01-18 |
| Expire Date :2009-01-17 |
 View Basket |
| Detailed Trade Lead Description |
| In particular:
CR-1000 is designed and developed on the basis of up-to-date rapier loom technology. It features Dobby device, macro-Jacquard device, auto-compensable elcetronic rolling and warp-feeding devices, and micro-computer control system. It has a broad application spectrum, from normal fabrics to fabrics of high density, high yarn-count, variable weft density, worsted pattern, etc. The warp feeding and rolling devices are elcetronic controled, capable of individual or synchronous motion and auto-compensation, which ensures stability of warp thread tension during warp feeding. Weft density can be changed in the range 3-80 wefts/cm simply by rotate hand wheel of weft density adjuster connected with the warp feeding and rolling devices. The weft selection is mechanical or electronic (optional) controled, suitable for mono-colored or multi-colored (up to 8 colors) fabrics. The control system coordinates the warp feeding, rolling, weft control and other functions. It features LED display panel (GB character), programmable process parameters setting, auto-diagnostic, etc. Cr-1000 is equipped with modern shedding devices, both Dobby and Jacquard to satisfy all weaving needs.
Capability:
Width: 190-380cm, Rotational velocity: 350-500R.P.M, weft selection: 6-8 colors, Power: <4.6KW, Diameter of warp beam flange: ø800mm, Max. roll diameter: ø550mm, weft density: 3-80/cm or 1-150/cm (customizable), control system: micro-computer.
|
|
|
