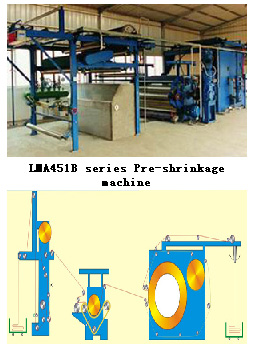

PRODUCT NAME： LMA451B series Pre-shrinkage machine
USE AND CHARACTERISTIC:
Application：It is suitable for sanforizing various weaving fabrics of pure cotton, polyester-cotton, corduroy, yarn damask, color weaving cloth and flax to improve the feel, steady size and reduce the shrinkage.
Wide variety（ used for sanforizing weaving fabrics of pure cotton, polyester-cotton, corduroy, yarn damask, color weaving cloth, flax and high-grade knitted fabric, also other fabric）
High Preshrinking ability（up to 18%，according to fabric variety）
Good finish result（fleshy and soft feel, and distinctive line）
Advanced technique（4-unit A.C. Inverter、PLC control、speed closed loop for each unit）
Little fabric tension（no tension frame among each unit，relax reinforced synchronization control and permanent fabric tension）
Good Process re-action（shrinkage and temperature can be displayed on-line, and temperature can be controlled on-line）
High maneuverability（touch screen intelligent control system and digital display with each parameter; which can be operated and set on screen）
Low labor intensity（rubber felt electrically press and lift）
High safety（photoelectricity are set at many points to automatically protect and manually protect）
TECHNOLOGY PARAMETER :
Width： 1800，2000，2200，2600，2800，3000，3200，3400
Machine hand： left or right hand
preshrinkage： up to 18%（according to fabric variety）
Shrinking rate： adjusted according to process requirement, min. 0~1%
Speed（m/min）：5~80
Rubber felt： thickness 67mm
Dia. Of drying cylinder of felt finish：Φ2000mm
Water consumption（Kg/hr）：500
Steam consumption（Kg/hr）：300
Installed power（Kw）：31
Total weight（T）：18
Overall dimension（mm）：10070×3685×3800
|
|
|
|
|
